Rotary Encoder How To

Rotary Encoders
Rotary encoders present several challenges:

• Contact bounce
• Sampling speed
• Quadrature encoding decoding

Contact bounce is a nuisance both for the button and the rotary encoder switches. We will deal with contact bounce for buttons and the rotary encoder using two different methods.

Sampling speed is important so button presses are not missed and rotary encoder operation is smooth and responsive.

Contact Bounce

Shown below is a basic switch connection schematic where the switch can be a pushbutton, toggle, rotary encoder, etc. When the switch is open a small current flows through the internal pullup resistor, resulting in 5V at the Arduino input pin. When the switch is closed all the current flows to ground, pulling the Arduino input pin to 0V.

Mechanically, when a switch is closed the switch contacts scrape a little bit. This is by design and helps keep the switch contacts clean. However while doing this it makes intermittent contact and the resulting voltage that appears at the Arduino input pin looks sort of like this...

The glitchy area starting at 0 milliseconds is "bounce" that occurs as the contacts move against each other. Eventually the contacts settle and constant contact is made.

Bad Debouncing

One common hardware approach to debouncing is to add a low pass filter (a resistor and capacitor combination). Although this will filter out some high frequency noise it is ineffective at removing all of the contact bounce.

Low Pass Filter is a Poor Debounce Strategy

Basic Software Debouncing

What the software needs to do is ignore the noise but still respond to the constant contact when a button is pressed. This is done by watching the input signal until a minimum period of constant signal is seen.

This can be accomplished using a software delay loop as shown in this code...
void setup() { pinMode( BTN_PIN, INPUT_PULLUP ); } void loop() { // make sure button is not pressed now while (digitalRead( BTN_PIN ) == LOW) /* stall */ ; // wait for button to be pressed // a debounced button is 50 milliseconds of continuous contact // delay while watching the button // counting to 12000 loop cycles takes about 50 milliseconds for (int cycle_counter = 0; cycle_counter < 12000; cycle_counter++) // reset if button is released before debounce perioid is elapsed if (digitalRead( BTN_PIN ) == HIGH) cycle_counter = 0; // increment the count counter++; showCounter(); }

An improvement is to use the timer function millis() for the timing instead of counting CPU cycles. This allows the code to be non-blocking, as shown in this code...
void setup() { pinMode( BTN_PIN, INPUT_PULLUP ); } void loop() { // state variables for button debouncing static byte button_state = 0; static unsigned long button_tm; // non-blocking button debouncing... byte pin = digitalRead( BTN_PIN ); if (pin == HIGH) // button released button_state = 0; // waiting for first button contact else // button is pressed if (button_state == 0) { // first contact, start debounce period button_tm = millis(); button_state = 1; // waiting for continuous contact period } else if (button_state == 1) if (millis() - button_tm > 50) // 50 ms elapsed ? { button_state = 2; // got a debounced button, now waiting for button release // button processing code... // increment the count counter++; showCounter(); } // code to do other things at the same time... }

Both of the examples above do the debouncing on the front end of the press, which delays the detection of the button by a fraction of a second. We can make a further improvement to the code so that the debouncing is done on the release of the button instead, so that the button is detected right when it's pressed.
void setup() { pinMode( BTN_PIN, INPUT_PULLUP ); } void loop() { // state variables for button debouncing static byte button_state = 0; static unsigned long button_tm; // non-blocking button debouncing... byte pin = digitalRead( BTN_PIN ); if (pin == LOW) // pressed { if (button_state == 0) // not already pressed { button_state = 1; // button press event! // increment the count counter++; showCounter(); } button_tm = millis(); // [re]start debounce timer } else // not pressed if (millis() - button_tm > 50) // 50 ms elapsed ? button_state = 0; // button released // code to do other things at the same time... }

All of the previous examples rely on the loop() running quite fast in order to sample the button input quickly. We can make a further improvement by putting the button sampling into a periodic interrupt, which removes the requirement that loop() must run fast. Now loop() can perform tasks that take a significant amount of time and button presses will not be missed in the meantime.
// variables are volatile because they are changed in interrupt volatile boolean btn_event = false; // signal to foregnd that button press was detected volatile uint8_t btn_debounce_ticks = 0; // debounce ticks left (msec) ISR (TIMER0_COMPA_vect) // Interrupt is called once a millisecond { // read & debounce button, set btn_event if press is detected if (digitalRead( BTN_PIN )) // negative logic (LOW=pressed) { // button is not pressed if (btn_debounce_ticks) // in release debounce, count down debounce ticks btn_debounce_ticks--; } else { // button is pressed, trigger press event if appropriate if (btn_debounce_ticks == 0) // if not already pressed btn_event = true; // set button press event btn_debounce_ticks = 50; // [re]start debounce timer } } void setup() { pinMode( BTN_PIN, INPUT_PULLUP ); // hook timer0 (1 ms interrupt) by adding interrupt-on-compare-match // this code is specific to ATmega328 (works with Arduino UNO and Pro Mini) OCR0A = 0x80; // set compare match register for middle of count TIMSK0 |= _BV(OCIE0A); // enable compare match interrupt } void loop() { // watch for button press event noInterrupts(); // prevent interference from interrupt while accessing event variable boolean pressed = btn_event; // retrieve possible event btn_event = false; // clear event interrupts(); // end of critical section if (pressed) { // button press detected counter++; showCounter(); } // code to do other things at the same time... }

Rotary Encoder Debouncing and Decoding

A rotary encoder has two rotor contact switch outputs, designated A and B. The rotary encoder may also have a push switch contact output. The A and B signals are subject to contact bounce noise that's similar to other types of switches. However because of the way the A and B signals interact we can deal with contact bounce using a different method than the pushbutton.

Beware that the A and B rotation convention can vary depending on the rotary encoder model. Some models reverse A and B; the code must take this into account or the rotation direction will be backwards.

The way the encoder is constructed only one of the A or B signals can change state at a time. Each rotation detent is divided up into 4 phases defined by the A and B signal states. This obviously leads to 4 possible states. We will add a fifth state to act as a ratchet. The software implements the state machine as shown below. Notice that the spin count state change occurs in one direction only; this is important as the state change edge can be noisy and bounce back and forth between states. But since the detection occurs in one direction it latches in that direction and as a result any noise is ignored.

An "edge" is formed by concatenating two states; for example state 00 to 01 the edge is 0001. Below is the pseudocode for the core logic. The code is optimized by reduction so that it doesn't have to track the state exactly; rather it looks at the relevant edge transitions and uses two flag bits, CW_INHIBIT and CCW_INHIBIT, to differentiate the alternate 00 state for CW and CCW.
// basic rotary encoder decoding edge = (previous_state << 2) | new_state; switch (edge) { case 0b0010: if (!CCW_INHIBIT) spin = -1; CCW_INHIBIT = CW_INHIBIT = false; break; case 0b0001: if (!CW_INHIBIT) spin = +1; CCW_INHIBIT = CW_INHIBIT = false; break; case 0b1000: CCW_INHIBIT = true; break; case 0b0100: CW_INHIBIT = true; } previous_state = new_state;

An improvement to basic encoder decoding is dynamic speed boost, or velocirotor. The logic for this is to measure the time between rotary encoder movements and multiply the movement by a function that's inversely proportional to the time. So the shorter the time between movements the faster the spin counts.
// variable speed boost // the faster you spin it the more it boosts if (spin) // boost the spin by a multiplier that's a function of the time between movements { // 4 speed velocirotor int m = 1; // speed multiplier if (ticks_since_last_movement < 50) m = 2; // 2'nd gear if (ticks_since_last_movement < 20) m = 10; // 3'rd gear if (ticks_since_last_movement < 8) m = 50; // overdrive spin *= m; // boost by factor ticks_since_last_movement = 0; // reset timer to next movement } else ticks_since_last_movement++; // count time between movements

Breadboard Example

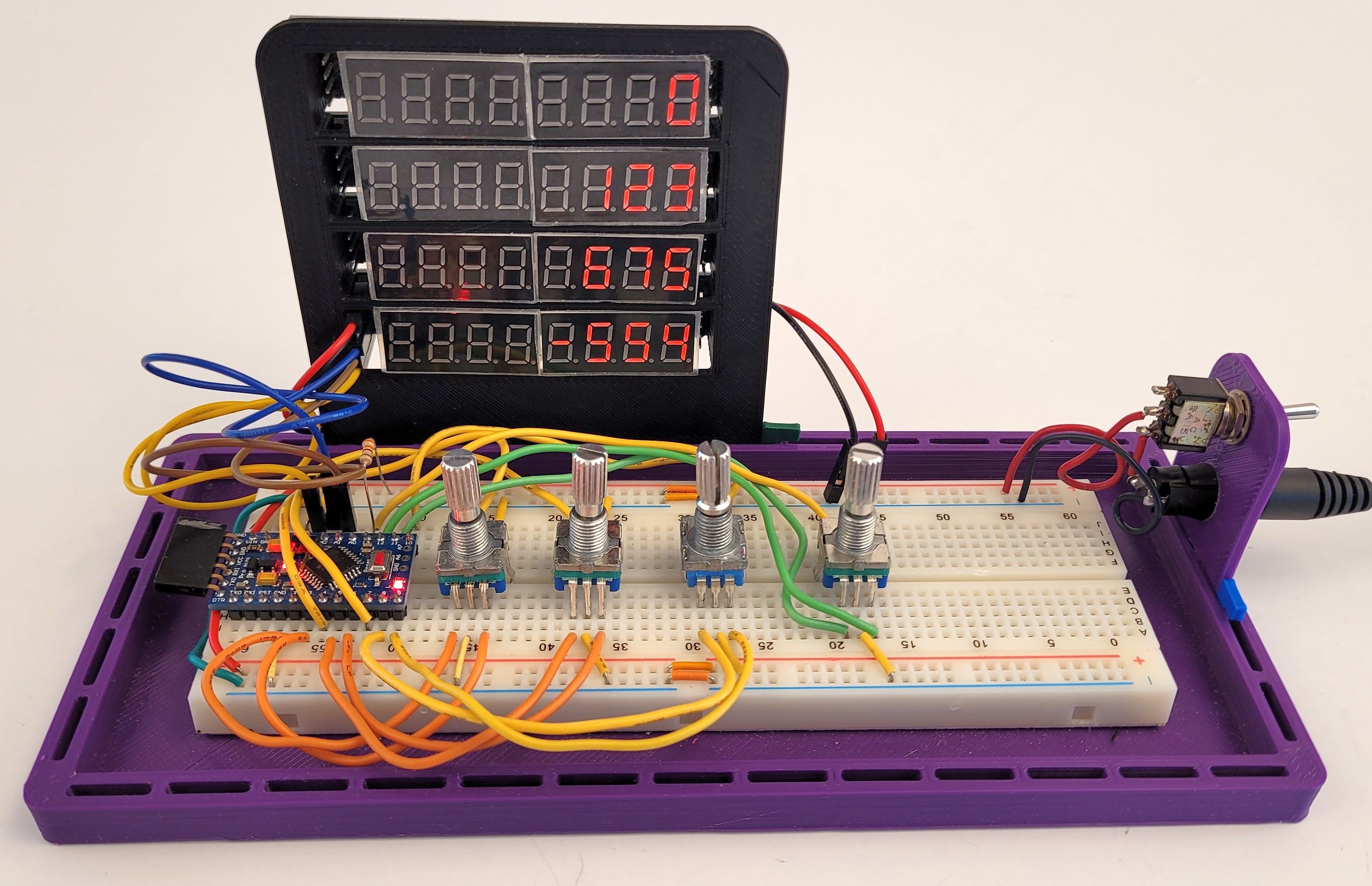

Here we have a 4 encoder breadboard example, plus an array of MAX7219 LED displays. The LED display is optional though; you can watch the output on the Serial Monitor. You also don't have to build up all 4 rotary encoders.

Wiring Schematic Diagram

Download Code
Breadboard Example Source Code	Arduino.zip
